Capacity list

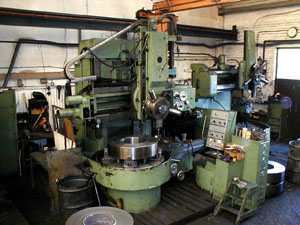

VERTICAL BORING (3) (WITH SCANOMATIC HYDRAULIC COPYING)	UP TO 60” DIAMETER – 38½” high 48” DIAMETER – 38½” high 30” DIAMETER – 42½” High

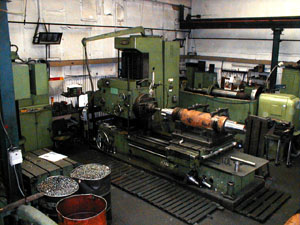

HORIZONTAL BORING (1) KEARNS RICHARDS	40” X 36” TABLE (fully reconditioned Feb 2001) FULL DIGITAL READ OUT
VERTICAL CNC MACHINING CENTRE (1996) CINCINNATI MILACRON ARROW 750	762mm X 510mm X 510mm TABLE SIZE ACRAMATIC A2100E CONTROL SYSTEM

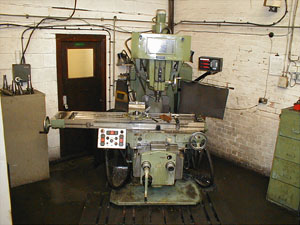

VERTICAL MILLING (1)	UP TO 16” X 63” TABLE FULL DIGITAL READ OUT
UNIVERSAL MILLING (2)	UP TO 16” X 67” TABLE FULL DIGITAL READ OUT
HERBERT 9 B30 1	30” SWING, 4’ BETWEEN CENTRES TAPER CAPACITY
CENTRE LATHES (2)	BOTH WITH FULL DIGITAL READ OUT

	Medium	Small
Between Centres	6'6"	5'
Swing Over Cross Slide	141 /2"	24"
Swing Over Bed	22"	16 1/2"
Swing In Gap	31 1/2"	34"
Gap Size	11"	6"

RADIAL ARM DRILLING (1)

6’ SWING

MEDIUM GENERAL MACHINE SHOP FACILITIES, INCLUDING SAWING, WELDING, ASSEMBLY WORK, FITTING, MAINTENANCE FITTING AND PRODUCTION. OUR OVERHEAD ELECTRICALLY OPERATED CRANE HAS A SAFE WORKING LOAD OF 2 TONS AND OUR MACHINE SHOP DOOR HAS A HEIGHT OF 12ft WITH A WIDTH OF 14ft.

H/TREATMENT, GRINDING AND SLOTTING SERVICES ARE ALSO OFFERED.

ALL WORK IS THOROUGHLY INSPECTED BEFORE DESPATCH – INSPECTION REPORTS IF REQUIRED.
